Switch Board Garam Hone Ki Waja Lahore and Quick Fix Guide
A warm switch board is never “normal.” If the plastic plate feels hot, the socket smells burnt, or the switch makes a crackling sound, the circuit is warning you before a bigger fault happens. In Lahore homes, this usually happens when heavy appliances run on weak wiring, cheap sockets, loose terminals, or overloaded extensions.
Switch Board Garam Hone Ki Waja Lahore is a common search because the issue can appear in any house, flat, shop, or upper portion, especially when irons, heaters, geysers, ACs, washing machines, and microwave ovens are used on the wrong point.
This guide explains the main causes, quick safe actions, expected repair work, and the cost factors. If the board is hot right now, switch off that point from the main supply if it is safe to do so, avoid touching the metal parts, and call a trained electrician.
LahoreFix.com can arrange an expert electrician in Lahore for switch board inspection, safe wiring, branded board replacement, and separate MCB installation. Call 0305-1717571 for urgent help.
Why a switch board gets hot in Lahore homes
A switch board heats up when current passes through a weak point. That weak point may be inside the socket, switch, wire joint, plug top, or the MCB connection. Heat is often the result of resistance. When electricity cannot flow smoothly, the connection starts heating.
Common causes include:
Loose screws inside the switch board
Undersized wiring for heavy appliances
Cheap or low-quality sockets
Old wiring with damaged insulation
Overloaded extension boards
Multiple heavy appliances on one point
Burnt plug pins or weak socket grip
Moisture entering the board
Poor work by an untrained electrician
In many Lahore houses, one socket is used for many things during winter, such as electric heaters, irons, and geyser-related equipment. In summer, AC stabilisers, water motors, and high-load appliances create similar pressure. If the wiring was not designed for that load, the board becomes hot.
A slightly warm charger point may not always be dangerous, especially with low-load devices. A hot board, burnt smell, black marks, melting plastic, or sparking is different. That needs immediate care.
Switch Board Garam Hone Ki Waja Lahore kya hai in simple English
The phrase means, “What is the reason why a switch board becomes hot in Lahore?” The short answer is usually one of two things: loose connection or overload.
A loose connection acts like a weak bridge. Current still passes through it, but not cleanly. The gap creates heat, sparks, and sometimes a buzzing sound. Over time, the plastic around the switch or socket can turn brown or melt.
Overload happens when an appliance needs more current than the board, socket, or wire can safely handle. For example, a small socket meant for normal home use should not run a heater and iron together. A washing machine, microwave, water pump, or room heater may need a stronger point with the right wiring and protection.
Low-quality boards create higher risk
Cheap boards and poor sockets may look fine from outside, but the metal grip inside can be weak. When the plug does not sit tightly, contact becomes poor. Poor contact creates heat.
This is why branded switches, good sockets, proper wire size, and correct MCB protection matter. A neat-looking board is not enough. The hidden connection behind it must be safe.
Old wiring can fail under modern load
Many older homes were wired when load needs were lower. Today, one room may have LED lights, chargers, an iron, a heater, inverter backup, and multiple appliances. If the original wiring was thin, old, or joined many times, it may heat up when modern load increases.
That does not always mean the whole house needs rewiring. A professional electrician can inspect the affected point, check the wire size, test the load, and recommend the safest repair.

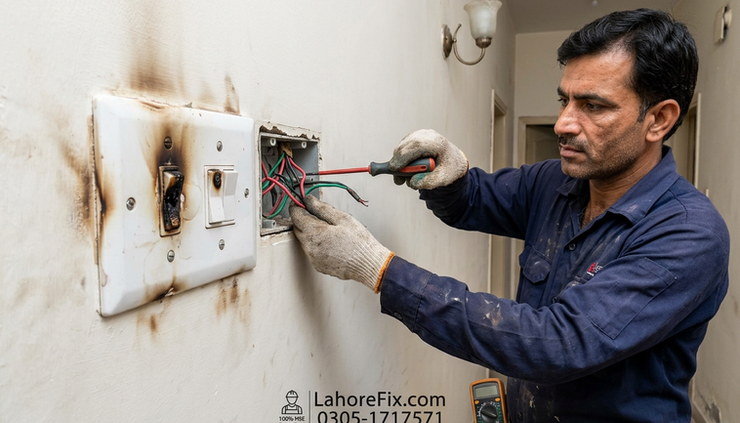

Warning signs you should not ignore
A hot switch board gives signs before it fully fails. Some signs are small, but they matter.
Call an electrician if you notice any of these:
The switch plate feels hot to touch
The socket area turns brown or black
A burning plastic smell comes from the board
The plug becomes hot after use
The switch makes a crackling sound
Lights flicker when an appliance starts
A plug feels loose inside the socket
Sparks appear when plugging in a device
The MCB trips again and again
The board works sometimes and stops sometimes
A hot switch board is a fault symptom, not a repair problem to delay until the weekend.
The most dangerous sign is a burnt smell. If you smell burning plastic near a board, turn off the supply from the main breaker if safe, keep children away, and stop using that point.
Do not pour water on an electrical board. Do not open it while power is on. Do not cover it with tape and continue using it. Tape can hide the danger, but it does not remove the fault.
What to do immediately when the board is hot
The first step is safety. The goal is to reduce risk until a qualified person checks the board.
Follow these steps:
Switch off the appliance
If an iron, heater, microwave, washing machine, or motor is connected, switch it off first.
Remove the plug only if safe
If the plug is too hot, melted, sparking, or stuck, do not force it. Turn off the main supply and wait for professional help.
Turn off the circuit
Use the main DB or MCB if you know which breaker controls that point. If unsure, turn off the main supply.
Keep the area clear
Move curtains, paper, cloth, plastic bags, and furniture away from the board.
Do not reuse the point
Even if it cools down, the fault may still be inside.
Call a trained electrician
LahoreFix.com can send an expert electrician for inspection and repair. Call 0305-1717571.
These steps are for immediate safety only. They are not a permanent fix.
Quick fixes a professional electrician may perform
A proper electrician will not simply change the front plate and leave. The heat source must be found. The repair depends on the fault.
Tightening loose terminals
If the issue is a loose screw or wire connection, the electrician may cut the damaged end, strip fresh wire, refit it properly, and tighten the terminal. If the wire has burnt badly, that section should not be reused.
Replacing a burnt socket or switch
A melted switch or socket should be replaced. Once heat damages plastic and metal grip, it can fail again. A branded socket with better contact quality is safer.
Installing a separate MCB
Heavy appliances should have proper protection. In many cases, a separate MCB helps protect that circuit from overload and short faults. The MCB rating must match the wire size and appliance load. Bigger MCB is not automatically safer. If the MCB is too high for the wire, the wire can heat before the breaker trips.
Upgrading wire size
If an appliance pulls more current than the wire can handle, the point needs suitable wiring. This is common for heaters, ACs, ovens, washing machines, and water motors. The electrician should choose wire size according to load, distance, and safety rules.
Fixing burnt joints behind the board

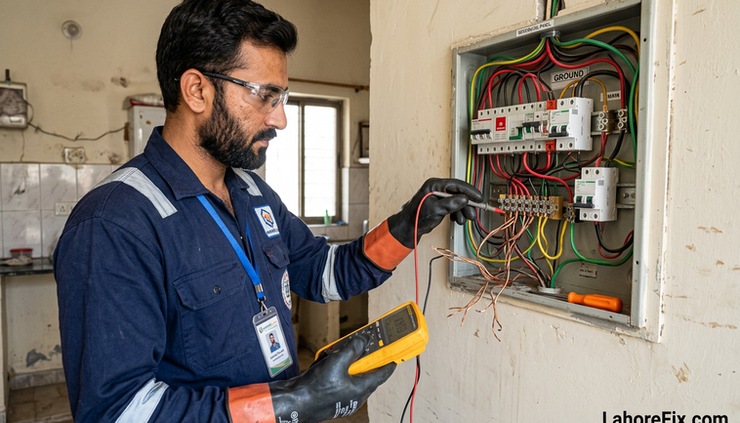

Sometimes the front switch looks acceptable, but the joint behind it is burnt. A good inspection checks the back box, neutral connection, phase wire, earthing, and any hidden joints.
Improving earthing
Earthing does not directly stop every heating issue, but it is a major safety part of the electrical system. Poor earthing increases shock risk and can make faults more dangerous.
What the repair may cost
The cost depends on the real fault, the quality of parts, and how much wiring work is needed. A small loose connection costs less than rewiring a heavy appliance point. A burnt board with damaged wire, weak back box, and MCB work costs more.
Main cost factors include:
Repair item | What affects the cost |
Switch or socket replacement | Brand, amp rating, plate type, and number of points |
Wiring repair | Length of wire, wire size, damage level, and wall access |
Separate MCB | MCB brand, rating, DB space, and circuit condition |
Labour | Fault complexity, urgency, and location access |
Full board replacement | Number of switches, sockets, indicators, and back box condition |
Avoid choosing the cheapest part for a high-load point. A low-quality socket may fail again and damage the plug, appliance wire, and board. Paying for the right part once is usually better than repeated repairs.
LahoreFix.com provides inspection-based guidance and can install branded boards with safe wiring. The brief also mentions a 6 months warranty on safe wiring work, so ask the technician to confirm warranty terms before the job starts.
Why DIY repair is risky
Changing a switch may look simple in a video, but real home wiring is not always clean. Wires may be old, colours may not match, and previous joints may be hidden. A wrong connection can create shock risk, short circuit, appliance damage, or fire.
DIY repair becomes especially risky when:
The board has black marks
Plastic has melted
The plug pin is burnt
The MCB is tripping
The board is feeding a heater, AC, oven, motor, or geyser
There is no proper earthing
The wiring is old or mixed with multiple joints
A professional electrician uses testers, checks load, confirms supply, and inspects the wiring path. That means the repair is based on the cause, not only the visible damage.
How to prevent a switch board from heating again
After repair, some habits can reduce the chance of repeat faults.
Use one heavy appliance on one proper point. Do not run an iron and heater together on a small socket. Avoid cheap multi-plugs for high loads. Keep plugs fully inserted and replace loose plugs early. If a socket grip becomes weak, replace it before it burns.
Good prevention includes:

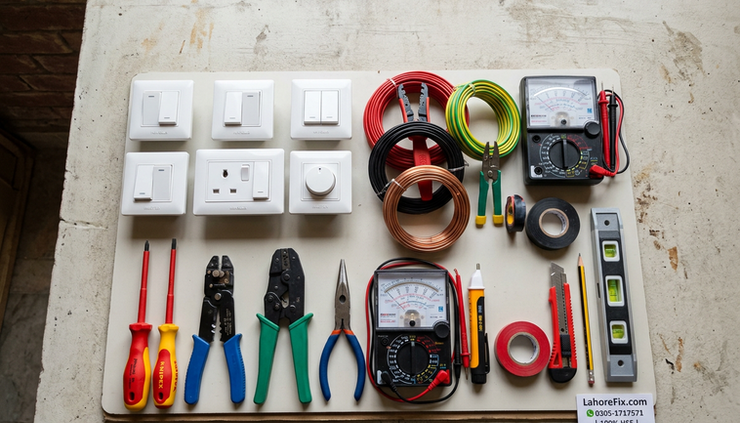

Use branded switches and sockets
Keep high-load appliances on dedicated points
Install correct MCB protection
Avoid overloaded extension boards
Check old boards once a year
Keep boards away from moisture
Replace burnt plugs and sockets together when needed
Do not ignore flickering or burning smell
For rented homes or older portions, an electrical safety check is useful before using heaters or large appliances. Many problems appear when winter load increases or when summer AC use starts.
When to call LahoreFix.com
Call for help when the board is hot, sparking, smelling burnt, or feeding a heavy appliance. Also call if a previous electrician only changed the switch but the board became hot again. Repeat heating means the real cause may still be present.
LahoreFix.com can help with:
Hot switch board inspection
Burnt socket replacement
Loose connection repair
Branded switch board installation
Separate MCB installation
Safe wiring for heavy appliances
Earthing checks
Emergency electrician visits in Lahore
The free text brief states that LahoreFix.com can arrange an expert electrician in around 30 minutes. Availability can depend on location, traffic, and time, so call 0305-1717571 and share the exact issue clearly.
Tell the electrician:
Which board is heating
What appliance was connected
Whether there is smell, smoke, or sparking
Whether the MCB tripped
Whether the socket or plug is burnt
Whether the issue is new or repeated
This helps the technician bring the right tools and parts.
Final takeaway
A hot switch board is usually caused by loose wiring, overload, cheap sockets, old wiring, or poor protection. Cooling down does not mean the fault has gone. The safe fix is to stop using the point, switch off the supply if needed, and get the board checked by a professional.
For fast help in Lahore, contact LahoreFix.com at 0305-1717571 and ask for an expert electrician to inspect the board, repair the wiring, install branded parts, and add proper MCB protection where needed.
